## Power Formula for Balanced System

This requires that the analysis be done in the time domain. For a Y-connected load, the phase voltages are(1) |

_{p}has been defined as the rms value of the phase voltage. If**Z**_{Y}= Z∠θ, the phase currents lag behind their corresponding phase voltages by θ. Thus,(2) |

_{p}is the rms value of the phase current. The total instantaneous power in the load is the sum of the instantaneous powers in the three phases; that is,(3) |

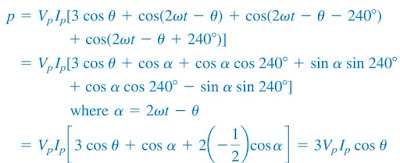

(4) |

(5) |

This is one important reason for using a three-phase system to generate and distribute power. We will look into another reason a little later.

Since the total instantaneous power is independent of time, the average power per phase P

_{p}for either the ∆-connected load or the Y-connected load is p/3, or(6) |

(7) |

(8) |

(9) |

**V**_{p}and**I**_{p}are the phase voltage and phase current with magnitudes V_{p}and I_{p}, respectively. The total average power is the sum of the average powers in the phases:(10) |

_{L}= I_{p}but V_{L}= √3V_{p}, whereas for a ∆-connected load, I_{L}= √3I_{p}but V_{L}= V_{p}. Thus, Equation.(10) applies for both Y-connected and ∆-connected loads. Similarly, the total reactive power is(11) |

(12) |

**Z**_{p}= Z_{p}∠θ is the load impedance per phase. (**Z**_{p}could be**Z**_{Y}or**Z**∆) Alternatively, we may write Equation.(12) as(13) |

_{p}, I_{p}, V_{L}, and I_{L}are all rms values and that θ is the angle of the load impedance or the angle between the phase voltage and the phase current.A second major advantage of three-phase systems for power distribution is that the three-phase system uses a lesser amount of wire than the single-phase system for the same line voltage V

_{L}and the same absorbed power P_{L}.We will compare these cases and assume in both that the wires are of the same material (e.g., copper with resistivity ρ), of the same length

*l*, and that the loads are resistive (i.e., unity power factor). For the two-wire single-phase system in Figure.(1a), I_{L}= P_{L}/V_{L}, so the power loss in the two wires is(14) |

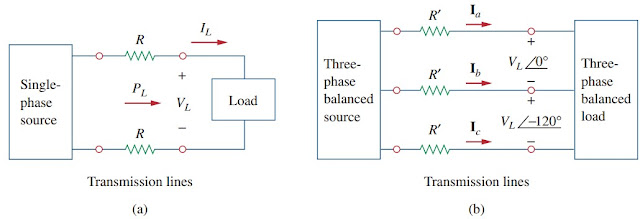

_{L}= |**I**_{a}| = |**I**_{b}| = |**I**_{c}| = P_{L}/√3V_{L}from Equation.(10)Figure 1. Comparing the power loss in (a) a single-phase system, and (b) a three-phase system. |

(15) |

_{L}and same line voltage V_{L},(16) |

*l*/πr^{2}and R' = ρ*l*/πr^{2}, where r and r' are the radii of the wires. Thus,(17) |

^{2}= 2r'^{2}. The ratio of material required is determined by the number of wires and their volumes, so(18) |

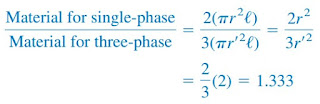

^{2}= 2r'^{2}. Equation.(18) shows that the single-phase system uses 33 percent more material than the three-phase system or that the threephase system uses only 75 percent of the material used in the equivalent single-phase system.In other words, considerably less material is needed to deliver the same power with a three-phase system than is required for a single-phase system.

## Power Formula for Balanced System Examples

For better understanding let us review the examples below:1. Refer to the circuit in Figure.(2). Determine the total average power, reactive power, and complex power at the source and at the load.

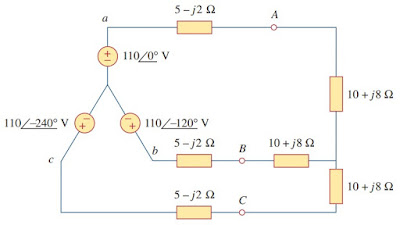

Figure 2 |

*Solution:*It is sufficient to consider one phase, as the system is balanced. For phase

*a*,

Thus, at the source, the complex power supplied is

The real or average power supplied is −2087 W and the reactive power is −834.6 VAR.

At the load, the complex power absorbed is

where

**Z**

_{p}= 10 + j8 = 12.81∠38.66◦ and

**I**

_{p}=

**I**

_{a}= 6.81∠−21.8◦.

Hence

The real power absorbed is 1391.7 W and the reactive power absorbed is 1113.3 VAR.

The difference between the two complex powers is absorbed by the line impedance (5 − j2) Ω. To show that this is the case, we find the complex power absorbed by the line as

which is the difference between

**S**

_{s}and

**S**

_{L}, that is,

**S**

_{s}+

**S**

_{l}+

**S**

_{L}= 0, as expected.

2. A three-phase motor can be regarded as a balanced Y-load. A three-phase motor draws 5.6 kW when the line voltage is 220 V and the line current is 18.2 A. Determine the power factor of the motor.

*Solution:*The apparent power is

Since the real power is

the power factor is

3. Two balanced loads are connected to a 240-kV rms 60-Hz line, as shown in Figure.(3a). Load 1 draws 30 kW at a power factor of 0.6 lagging, while load 2 draws 45 kVAR at a power factor of 0.8 lagging.

Assuming the

*abc*sequence, determine: (a) the complex, real, and reactive powers absorbed by the combined load, (b) the line currents, and (c) the kVAR rating of the three capacitors ∆-connected in parallel with the load that will raise the power factor to 0.9 lagging and the capacitance of each capacitor.

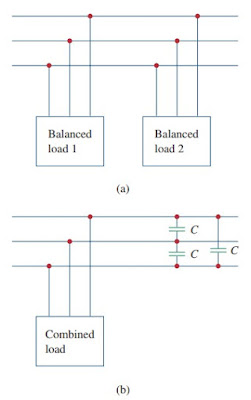

Figure 3 |

*Solution:*(a) For load 1, given that P

_{1}= 30 kW and cos θ

_{1}= 0.6, then sin θ

_{1}= 0.8.

Hence,

and Q

_{1}= S

_{1}sin θ

_{1}= 50(0.8) = 40 kVAR. Thus, the complex power due to load 1 is

(3.1) |

_{2}= 45 kVAR and cos θ

_{2}= 0.8, then sin θ

_{2}= 0.6. We find

and P

_{2}= S

_{2}cos θ

_{2}= 75(0.8) = 60 kW. Therefore the complex power due to load 2 is

(3.2) |

(3.3) |

(b) Since S = √3V

_{L}I

_{L}, the line current is

(3.4) |

_{L}= 240 kV. For load 1,

Since the power factor is lagging, the line current lags the line voltage by θ

_{1}= cos

^{−1}0.6 = 53.13 ◦. Thus,

For load 2,

and the line current lags the line voltage by θ

_{2}= cos

^{−1}0.8 = 36.87 ◦.

Hence,

The total line current is

Alternatively, we could obtain the current from the total complex power using Equation.(3.4) as

and

which is the same as before. The other line currents,

**I**

_{b2}and

**I**

_{ca}, can be obtained according to the

*abc*sequence (i.e.,

**I**

_{b}= 297.82∠−163.36◦ mA and

**I**

_{c}= 297.82∠76.64◦ mA).

(c) We can find the reactive power needed to bring the power factor to 0.9 lagging,

where P = 90 kW, θ

_{old}= 43.36◦, and θ

_{new}= cos

^{−1}0.9 = 25.84◦.

Hence,

This reactive power is for the three capacitors. For each capacitor, the rating Q'

_{C}= 13.8 kVAR. The required capacitance is

Since the capacitors are ∆-connected as shown in Figure.(3b), V

_{rms}in the above formula is the line-to-line or line voltage, which is 240 kV.

Thus,

Have you understood what is power formula for balanced system? Don't forget to share and subscribe! Happy learning!

*Reference: Fundamentals of electric circuits by Charles K. Alexander and Matthew N. O. Sadiku*
